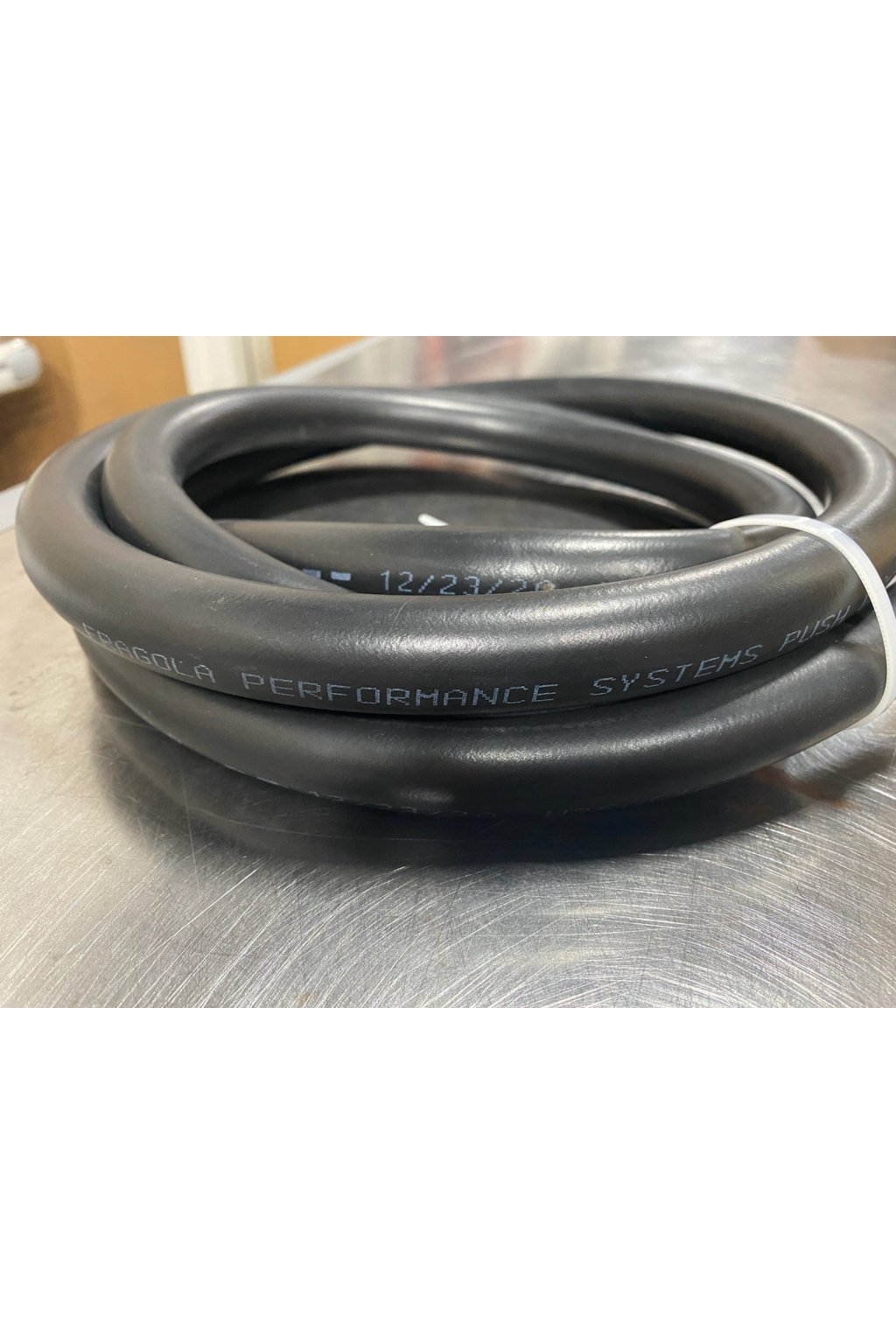

SERIES 8300, BLACK HI-TEMP PUSH-LOK HOSE
Description
FPS Series 8300 Push-Lite Race Hose is manufactured to the same rigorous standards as our Series 3000 Stainless Race Hose. It is the perfect alternative when cost or weight is the main consideration.
27 bar maximum working pressure allows for most automotive water, oil and fuel systems.

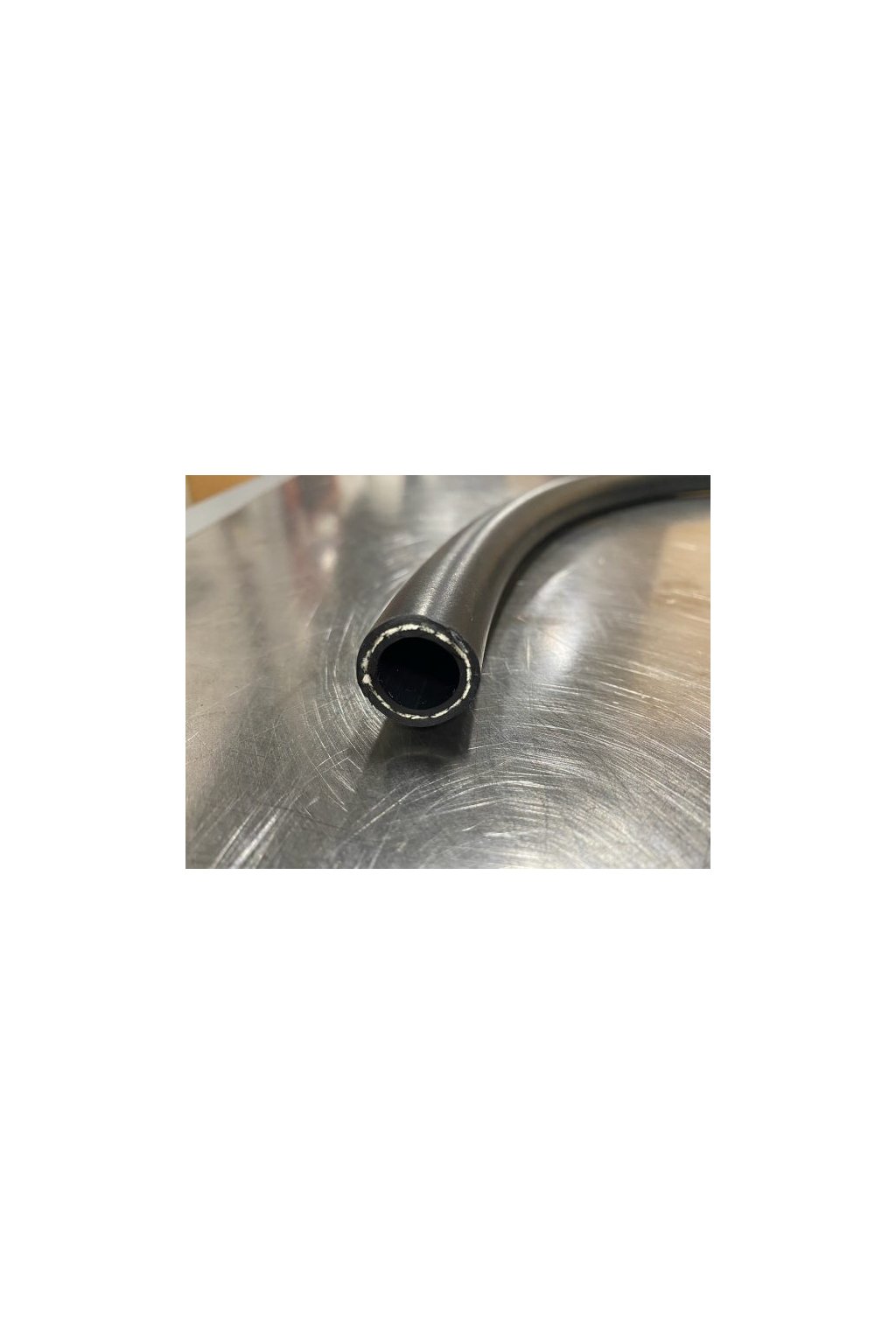

Inner layer of synthetic PKR with nylon reinforcing braid & synthetic black rubber cover.
Temperature range to 149°C.
Hose assemblies with Push-Lite Hose are over half the weight of the same stainless hose assembly.
For high heat or higher-pressure applications, we recommend our light-weight stainless band clamps.
The Series 8300 Push-Lite Hose may be used in any number of automotive applications. If you are using fittings other than our Series 8000 Push-Lite Hose Ends, be sure to measure the hose barb diameter to determine suitability. This hose is sized fractionally, but the suitability is at the sole determination of the end user.
Description
FPS Series 8300 Push-Lite Race Hose is manufactured to the same rigorous standards as our Series 3000 Stainless Race Hose. It is the perfect alternative when cost or weight is the main consideration.
27 bar maximum working pressure allows for most automotive water, oil and fuel systems.
Inner layer of synthetic PKR with nylon reinforcing braid & synthetic black rubber cover.
Temperature range to 149°C.
Hose assemblies with Push-Lite Hose are over half the weight of the same stainless hose assembly.
For high heat or higher-pressure applications, we recommend our light-weight stainless band clamps.
The Series 8300 Push-Lite Hose may be used in any number of automotive applications. If you are using fittings other than our Series 8000 Push-Lite Hose Ends, be sure to measure the hose barb diameter to determine suitability. This hose is sized fractionally, but the suitability is at the sole determination of the end user.
Technical Specifications
| I.D. | Push-LOK Designation | Max Burst Pressure | Vacuum Rating | Weight Per m. |
| 6,3 mm | -4 | 24 bar | -0,95 bar | 136 g |
| 9,5 mm | -6 | 20 bar | -0,95 bar | 166 g |
| 12,7 mm | -8 | 20 bar | -0,95 bar | 272 g |
| 15,9 mm | -10 | 17 bar | -0,61 bar | 287 g |
| 19,0 mm | -12 | 17 bar | -0,61 bar | 362 g |
