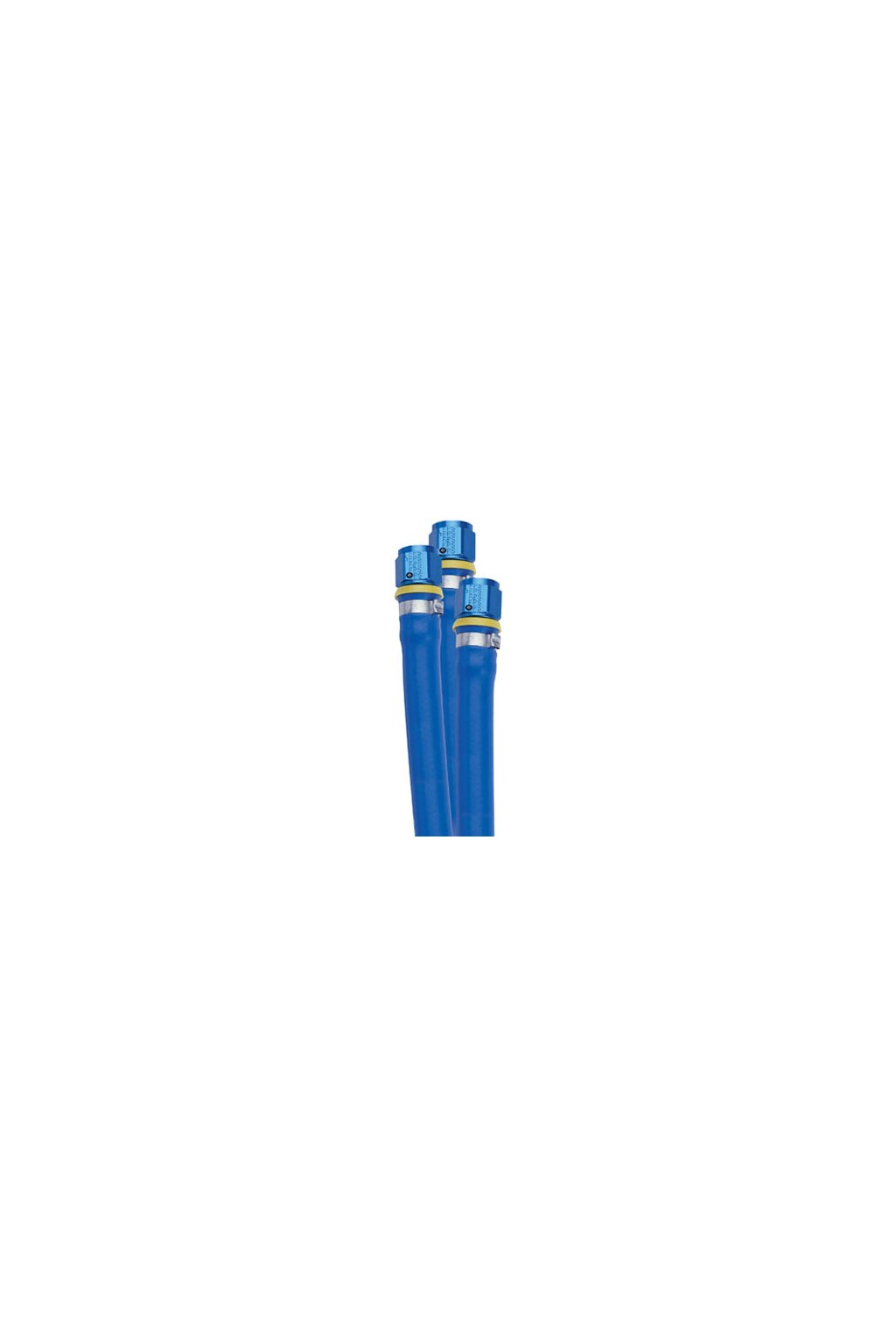

SERIES 8600/8700, BLACK & BLUE, SMOOTH PARKER PUSH-LOK HOSE
Description
Parker Push-Lok is the performance standard for a multitude of applications. It is manufactured to the same rigorous standards as all of Parker’s products. This hose performs well when used within the temperature and pressure parameters that it was designed for:
17 bar. maximum pressure for most oil, water and fuel applications.
Temperature range –40°C to 100°C.
Synthetic rubber tube is covered with one layer of textile braid, combined with an outer layer of synthetic colored rubber. Sized in fractions and may be used with any push-on style fitting. Series 8000 Push Lite Race Hose Ends work well with this type of hose.
Description
Parker Push-Lok is the performance standard for a multitude of applications. It is manufactured to the same rigorous standards as all of Parker’s products. This hose performs well when used within the temperature and pressure parameters that it was designed for:
17 bar. maximum pressure for most oil, water and fuel applications.
Temperature range –40°C to 100°C.
Synthetic rubber tube is covered with one layer of textile braid, combined with an outer layer of synthetic colored rubber. Sized in fractions and may be used with any push-on style fitting. Series 8000 Push Lite Race Hose Ends work well with this type of hose.
Technical Specifications
| I.D. | Push-LOK Designation | Max Burst Pressure | Vacuum Rating | Weight Per m. |
| 6,3 mm | -4 | 17 bar | -0,94 bar | 136 g |
| 9,5 mm | -6 | 17 bar | -0,94 bar | 166 g |
| 12,7 mm | -8 | 17 bar | -0,94 bar | 272 g |
| 15,8 mm | -10 | 17 bar | - 0,51 bar | 287 g |
| 19,0 mm | -12 | 17 bar | - 0,51 bar | 260 g |
| 25,4 mm | -16 | 12 bar | - 0,51 bar | 830 g |
